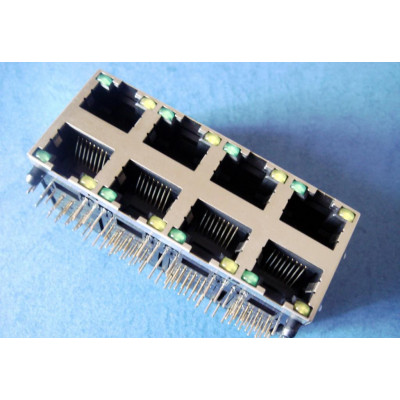

r 59B 2X4网络插座, LED灯 8C 屏蔽r
rr rr MATERIALr
r rr r
r r r rr 1. HOUSING MATERIAL : GLASS FILLED PLYESTER UL94V-0PBT、NYLONr2. HOUSING COLOR : BLACK OR OTHERSr3. ConTACT MATERIAL : PHOSPHOR BRonZE φ0.46mmr4. PLATING: GOLD PLATING OVER NICKEL.GOLD PLATINGrTHICKNESS 1.5u"/3u"/6u"/15u"/30u"/50u"r5. SHIELD : 0.23 THICKNESS BRASS WITH NICKEL PLATEDr6. LED : OPTIONr
r r r r rr r
r rr r
r rr SPECIFICATIONSr
r r r r rr r
r rr ELECTRICALr1. VOLTAGE RATING: 125 VAC RMS.r2. CURRENT RATING: 1.5 AMPr3. ConTACT RESISTANCE: 30 MILLIOHMS MAX.r4. INSULATION RESISTANCE : 500 MEGOHMS MIN＠500 VDCr5. DIELECTRIC WITHSTANDING RESISTANCE: 1000 VAC RMS.50Hz 1MINUTErMECHANICALr1. DURABILITY : 750 CYCLES MINr2. PCB RETENTION PRE-SOLDER: 1 LB MINrENVIRONMENTALr1. STORAGE :-40℃~80℃r2. OPERATION: 0℃~70℃r
