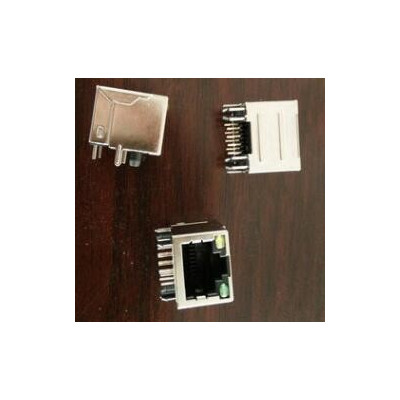

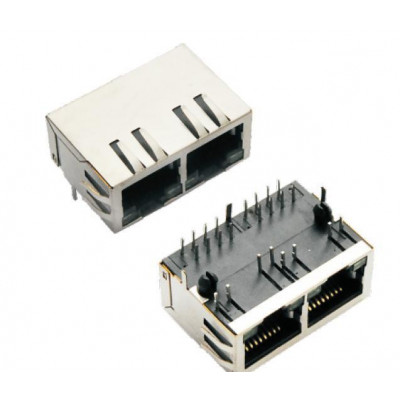

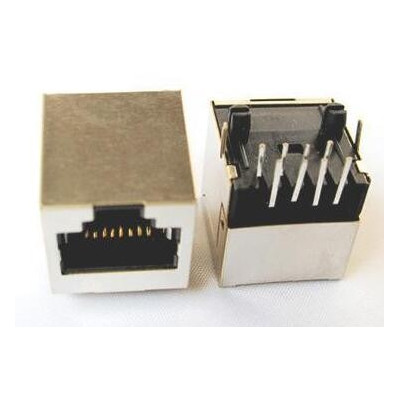

供应兴伸展电子100BASE1*2RJ45带滤波器/10 100BASE网络插座(图)/RJ45连接器网络插座

MATERIAL



1. HOUSING MATERIAL : GLASS FILLED PLYESTER UL94V-0PBT、NYLON
2. HOUSING COLOR : BLACK OR OTHERS
3. ConTACT MATERIAL : PHOSPHOR BRONZEφ0.46mm&t=0.35mm
4. PLATING: ConTACT AREA-SELECTING GOLD  TAILS-150u" TIN-LEAD MIN OVER 50u" NICKEL

5.SHIELD:0.23 THICKNESS BRASS WITH NICKEL PLATED

6. LED: OPTION





   SPECIFICATIONS



ELECTRICAL
1. INDUCTANCE AT 100mVDC BIAS: 350μ H MAX.
2. C W/W(pF MAX):28 pF
3. LEAKAGE INDUCTANCE AT 100KHz DC 100mV:0.3μ H MAX.
4. INSULATION LOSS: 1.0dB MAX @1-80 MHz 1.2dB MAX @ 100 MHz

5. RETURN LOSS: 14dB MIN @ 1-60 MHz 10dB MIN @ 60-100 MHz

6. CROSS TALK: 35 dB MIN @ 1-80 Mhz
MECHANICAL
1. MATING FORCE: 2.27 Kgf MAX
2. DURABILITY: 750 CYCLES MIN

3. PCB RETENTION PRE-SOLDER:1LB MIN

ENVIRONMENTAL
1. STORAGE :-40℃~85℃
MATES WITH MODULAR PLUG ConFORMING TO FCC PART 68,SUBPART F.



FEATUER

1. RJ45 10/100 base-TX TRANSFORMER JACK WITH TRANSFORMER/IMPEDANCE RESISTOR/HIGH VOLTAGE CAPACITOR

2. SIZE SAME AS RJ45 MODULAR JACK TO SAVE PCB BOARD SPACE

3. REDUCE EMI RADIATION,IMPROVE EMI PERFORMANCE

4. DESIGNED FOR NETWORK INTERFACE CARD APPLICATION

5. DESIGNED TO MEET IEEE 802.3u REQUIREMENT

6. DESIGHED FOR 100 base TRANSMISSION OVER UTP-5 CABLE

7. OPERATION TEMPERATURE RANGE:0℃~70℃
