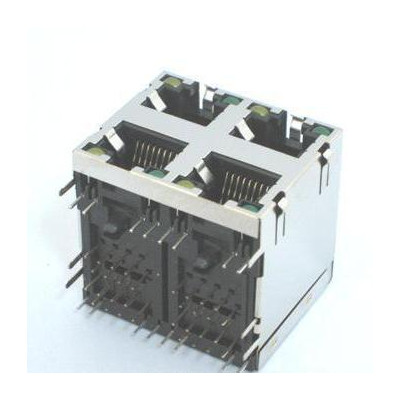

供应兴伸展电子8P8C2层4口RJ45带灯网络接口/交换机/RJ45插座/网络连接器插座

MATERIAL



1. HOUSING MATERIAL : GLASS FILLED PLYESTER UL94V-0PBT、NYLON
2. HOUSING COLOR : BLACK OR OTHERS
3. ConTACT MATERIAL : PHOSPHOR BRonZE φ0.46mm
4. PLATING: GOLD PLATING OVER NICKEL.GOLD PLATING
THICKNESS 1.5u"/3u"/6u"/15u"/30u"/50u"
5. SHIELD : 0.23 THICKNESS BRASS WITH NICKEL PLATED
6. LED : OPTION





   SPECIFICATIONS



ELECTRICAL
1. VOLTAGE RATING: 125 VAC RMS.
2. CURRENT RATING: 1.5 AMP
3. ConTACT RESISTANCE: 30 MILLIOHMS MAX.
4. INSULATION RESISTANCE : 500 MEGOHMS MIN＠500 VDC
5. DIELECTRIC WITHSTANDING RESISTANCE: 1000 VAC RMS.50Hz 1MINUTE
MECHANICAL
1. DURABILITY : 750 CYCLES MIN
2. PCB RETENTION PRE-SOLDER: 1 LB MIN
ENVIRONMENTAL
1. STORAGE :-40℃~80℃
2. OPERATION: 0℃~70℃
